Geo Dome Installation – Technical Specifications (Imperial Units)



Structural Overview.

• Type: Three-Frequency Geodesic Dome.

• Height: 11 ft. (3 m).

• Diameter: 22 ft. (6 m).

• Primary Material: 4 inches x 4 inches pressure-treated wood.

• Exterior Finish: White, sand-texture outdoor paint.

​

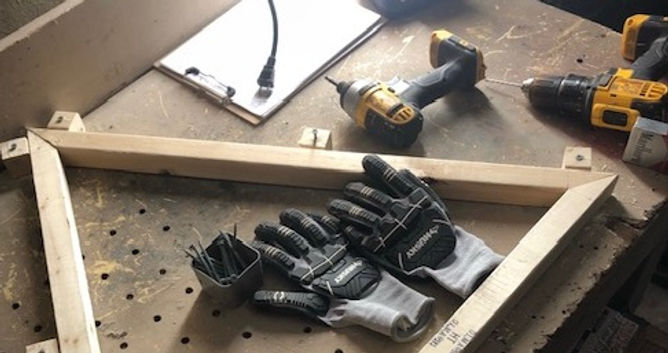

Triangle Connection System.

• Internal connectors: 1 inch thick pressure-treated wood.

• Painted white to match structure

• Fastened with screws for durable assembly.

​

Interior Paneling.

• All interior triangular faces are. fitted with golden-yellow plexiglass

• Mounted on the interior side.

​

Stage Platform Specifications.

• Material: 4 inches x 4 inches pressure-treated wood frame.

• Finished with wood floor slabs

• Diameter (approx.):

• 7 m ≈. 23 ft width.

• 8.5 m ≈. 28 ft depth.

• Raised Base Height:

• 40 cm ≈. 16 inches.

• Additional ventilation gap: 15 cm ≈. 6 inches.

• Total Stage Elevation:

• 22 inches above ground (16 inches + 6 inches).

• ≈. 1 ft 10 inches total elevation.

​

Front Access.

• Two steps at the main entry.

• First step extends approx. 3 ft 3 inches beneath the stage gap.

• Front projection: 1.5 m ≈. 5 ft in front of the dome’s doorway.

​

Lighting.

• Two Waterproof LED Solar Multi-Zoom Spotlights.

• One at each front-left and front-right stage corner.

• Positioned to illuminate the dome entrance.

​

Optional Design Elements (Not Mandatory).

​

Hypercube Table.

• Lightweight hollow concrete, support structure.

• Painted white with sand-texture outdoor finish.

• Glass tabletop.

​​

Icosahedron Centerpiece.

• Lightweight hollow concrete structure.

• Painted white with sand-texture outdoor finish.

​

Stone Walkway (Optional).

• Size: total length 2 m ≈. 6 ft 6 inches.

    • 70 cm ≈. 28 inches wide.

​​​
